MP Mini Eagle series marine lights for harsh environment

MP MINI EAGLE SERIES AT A GLANCE

  • Black or White exterior
  • Designed in U.S.A.
  • 2 Year Limited Warranty

* The optional external diffusing lens is required to easily convert from spot to flood.

Send Inquiry

描述

MP Mini Eagle Series Using the appropriate fixture material for the application is critical in order to ensure high robustness and a long operating life of the light fittings, resulting in minimal or zero downtime.
Important factors when working with solutions for offshore lights:
– Fulfillment of all applicable rules for the cruise vessel.
IP67 class.Saltwater corrosion prevention cruising pontoon

Mechanical strength/impact resistance,Vibration Resistance:ANSICI36.31

– Low maintenance and reduced power consumption (high energy efficiency).

MP Mini Eagle Series as the best-in-class commercial grade luminaire,designed in New York and we spec to use only the finest materials and best commercial manufacturing practices to produce.

Patented Optical Circuit

MP Eagle products feature a unique bulb layout designed to minimize shadows and light gaps. Each Mini luminaire consists of 21 Chips all working in unison to create a single exceptionally uniform light beam – an important safety feature for superior visibility.

Our Mnin Sport lights run cool, but more importantly they display a consistent uniformity of temperature among all LED bulbs, never reaching more than a 10°C difference between the hottest and coolest lights. To achieve this, all of our lights are thermally imaged, and each image is closely examined to ensure it passes our strict temperature homogeneity requirements. This guarantees a uniform brightness for each luminaire.

In the rare event that a chip should burn out; the rest will continue to illuminate with reliable performance. This winning combination of innovative technology, cutting-edge materials and our thorough attention to detail, results in a superior product, every time.

Light Shaping Technology

MP EAGLE’s light shaping diffuser changes the beam angle on the spot from 20 degrees to 76 degrees on the flood using the world’s most advanced material-science and physics-based technology.  In addition, as LED chip manufacturing has matured in recent years, we’ve identified industry trends of using just a few large LED chips to attain the same overall optical output at substantially reduced costs and with inferior optics.

MP EAGLE didn’t just follow this trend. We instead used 63 LED chips with a precisely engineered collimator and a light shaping diffuser to create a concise, reliable and uniform beam projection.

Our commitment to science and technology is a key component of our innovative, high-efficiency product line, which transcends normal light into the world-renowned MP EAGLE.

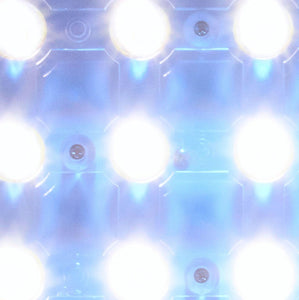

Venting System

MP Eagle products use a military grade venting system from Gore that prevents condensation build up, which can “fog” a light. The light can basically breathe –as water vapor is drawn out, water droplets are unable to come in. 90% of other lights on the market lack this feature.

MP Eagle draws on substantial experience from aerospace and military electronics design, having successfully implemented this venting technology across many projects in these fields. This is a crucial benefit; especially for high optical output LED marine lights, as a bright and clear light can perform reliably to insure visibility on the water in any weather condition.

Because of this breathability, our products ensure equalized pressure so that each light won’t go out of shape. In other words, the lens will always look perfectly flat no matter how many days it’s put to use and no matter the conditions. Finally, thanks to this lack of pressure differential, our products’ seals won’t be compromised over time and the IP67 waterproofness rating can be maintained for the entire life of the product.

High-Performance Materials

Some of our competitors settle for using plastic in manufacturing when they need to cut weight because it’s an “easy” and inexpensive path. MP Eagle however, prefers the “best” way to design and uses something far more rugged – an advanced engineering composite called Ultem 2300 to construct a high strength but ultra-light frame around each light fixture.

This material is 30% glass fiber-reinforced, with similar elements employed in state-of-the-art aircraft fuselages. It features the winning attributes of a high-performance polymer with resistance to extreme temperatures, exceptional flame and heat resistance, and the ability to endure up to 340°F and down to -67°F.

But we didn’t just stop there. Our marine lights are also 100% waterproof, and tested for their respective ratings. Finally, to guarantee product integrity, each and every light is rigorously tested before we ship to you.

Weather Resistant Coating

Introducing the Ceramic Pro Super Hydrophobic Coating for Industrial use – optional with MP Eagle.Factory applied or field retrofitted, this coating will turn your MP Eagle investment into a self cleaning, UV resistant, game changer for all kinds of tough applications, including both marine and land based applications such as construction.

Its nano-ceramic technology brilliantly protects surfaces against corrosion, oxidation, and chemicals. Its super hydrophobic properties naturally leave a nice glossy finish and provide a new level of previously unavailable preventative protection.

其他信息

重量 3.6 kg
尺寸 12.9 × 8.25 × 3.06 cm
LED color (CCT)

5000K (Netutral White)

Brightness (lm)

24VDC/16670
12VDC/13300

Current Draw

24VDC/5.5A
12VDC/9A

Total Power Consumption

24VDC/140W
12VDC/110W

Beam Angle

20 deg (Spot >500m)

Operating Voltage

Autodetect between 12VDC & 24VDC

Water Resistance

IP67

Tmp Range

-40 ℃~50℃
